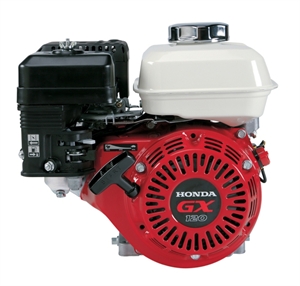

GX120UT1QXU Horizontal Shaft Engine
Single cylinder industrial petrol engine
Net Power 2.6kW (3.5HP) @ 3600rpm
Max Net Torque 7.3Nm @ 2500rpm
Fuel Tank Capacity 2.5 litres
Fuel Consumption 1.0L/h @ 3600rpm
Dry Weight 13kg
Dimensions LxWxH (mm) 305x341x318
Cast Iron Bore
3/4" shaft
Direct Drive
Recoil Start
* The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at the specified rpm. Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions,maintenance and other variables.
